MULTIFLANGE

Description

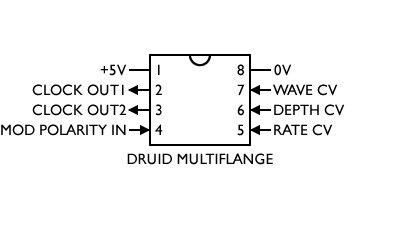

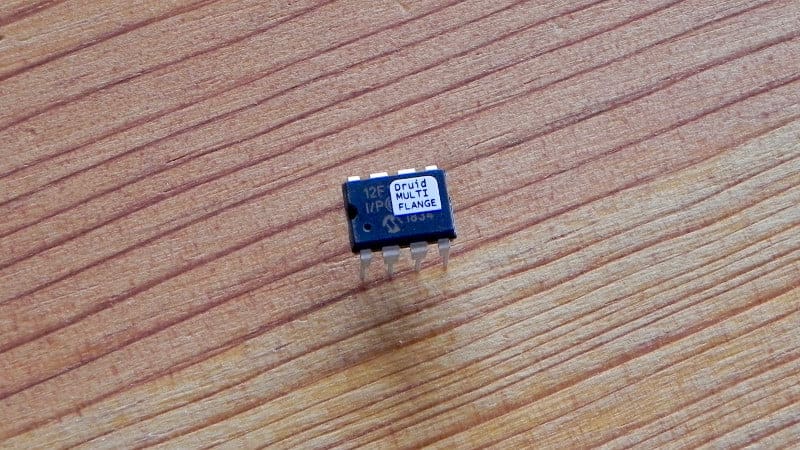

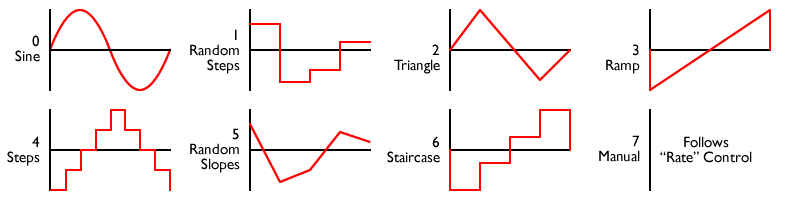

The MULTIFLANGE flanger delay clock chip includes an LFO with seven waveforms, including a “manual” mode for fixed flanger (“matrix”) filtering effects. LFO Rate, Waveform, and Depth are all variable using 0-5V control voltages. The chip outputs a biphase clock from 25KHz to 500KHz that can drive MN32xx-series delay lines directly.

The chip is simple to use, with no crystal required, and is in an 8-pin DIP package. It can replace the MN3102 clock chip and the associated LFO in many modulation effects, whilst providing many new features.

For further details including an example circuit, please see the MULTIFLANGE Datasheet.

There are also further details on the Flangelicious flanger project page.
