Flangelicious PCB + chipset


Buy a Flangelicious PCB, complete with the FLANGE chip and analog delay line of your choice, and save money compared to the separate price.

SKU: N/A Category:

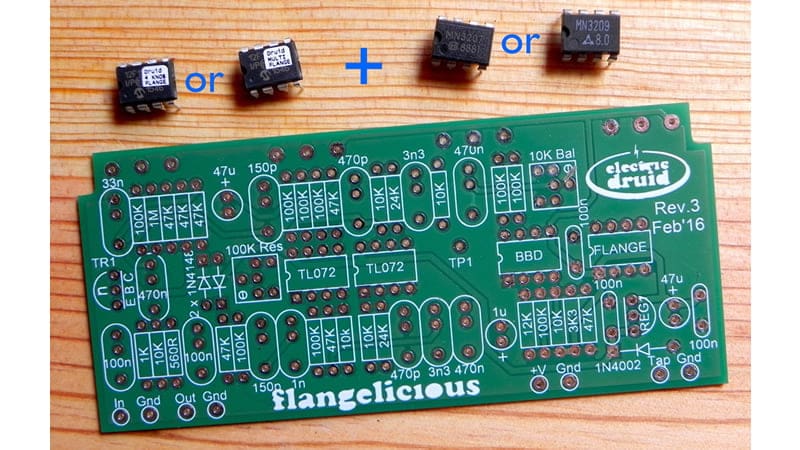

Flangelicious PCB, complete with your choice of FLANGE chip and BBD! Choose from the classic 4 Knob flanger, or the experimental seven waveform Multiflange, plus you can select either a 1024-stage or 256-stage analog delay line.

The PCB is FR4 fibreglass for strength, with plated through-holes and green soldermask and white screen print on both sides. The PCB layout can accept film capacitors with either 5mm/0.2″ or 7.5mm/0.3″ lead spacing, so you’re not limited in your choice of capacitors. Similarly, the PCB layout for the two trimmers can accept a variety of styles to make component selection as easy as possible.

You can download datasheets for the Four Knob Flanger chip and the Experimental Multiflange, and the MN3209 256-stage BBD and MN3207 1024-stage BBD. There’s also lots more information on the Flangelicious project page.

December 2018

We’re currently out of stock of MN3209 256-stage delay lines. If we can find more, we’ll get them in the shop again in the New Year, but for now, I’m afraid it’s MN3207 only. Thanks.

Additional information

Flanger option

Four Knob Flanger, Experimental Multiflange

BBD option

MN3209, 256 stages, MN3207, 1024 stages
