Description

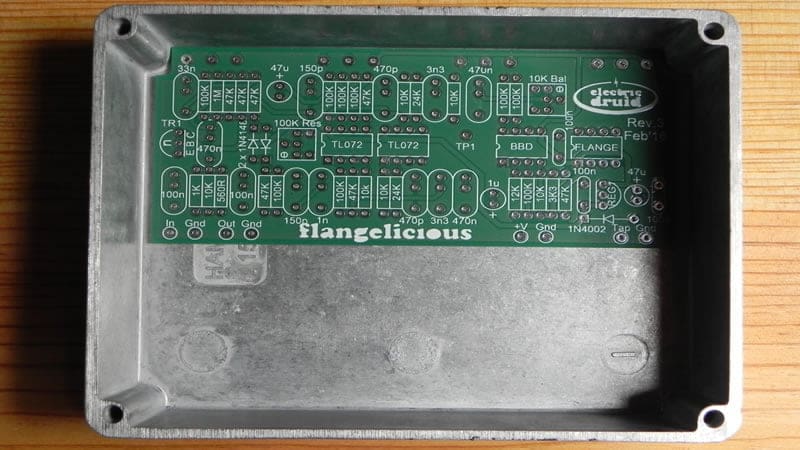

A PCB for the Flangelicious flanger project. This PCB is designed to fit into a Hammond 1490BB enclosure in landscape format.

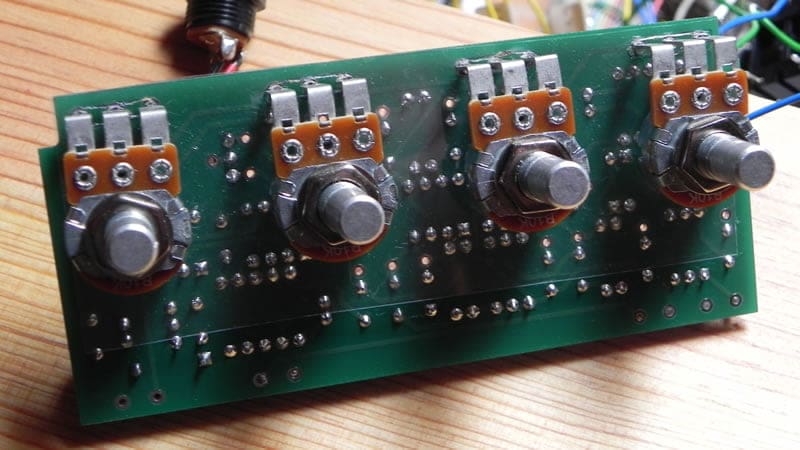

You might prefer to buy the PCB complete with the FLANGE clock chip and delay of your choice, and you can get a set of PCB mounting pots for a simple, reliable construction.

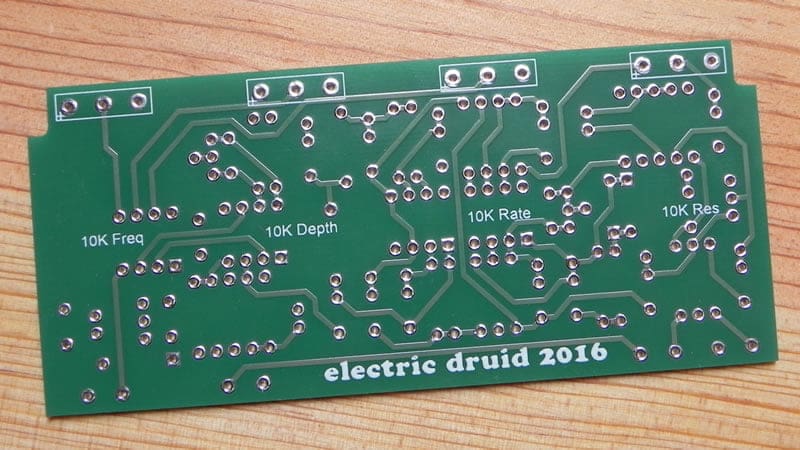

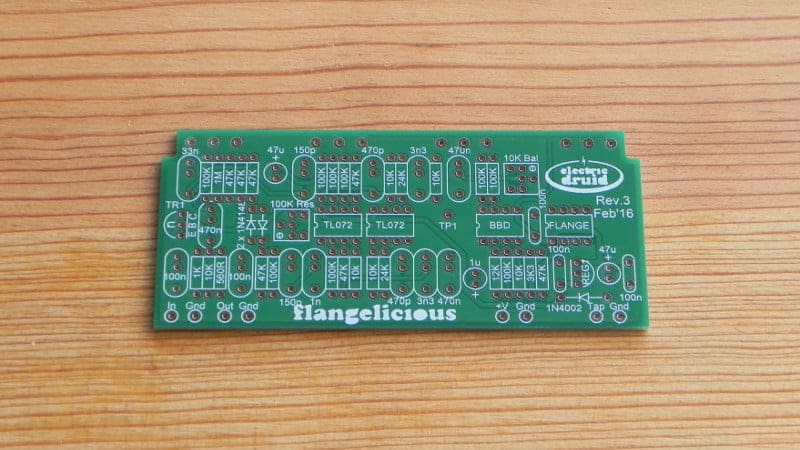

The PCB is FR4 fibreglass for strength, with plated through-holes and green soldermask and white screen print on both sides. The PCB layout can accept film capacitors with either 5mm/0.2″ or 7.5mm/0.3″ lead spacing, so you’re not limited in your choice of capacitors. Similarly, the PCB layout for the two trimmers can accept a variety of styles to make component selection as easy as possible.
