FilterFX PCB

Top quality PCB for the FilterFX project

4.50 ex. VAT

70 in stock (can be backordered)

SKU: FLTFXPCB Category:
1 - 9€4.50 ex. VAT
10 - 99€3.60 ex. VAT
100+€2.70 ex. VAT

Description

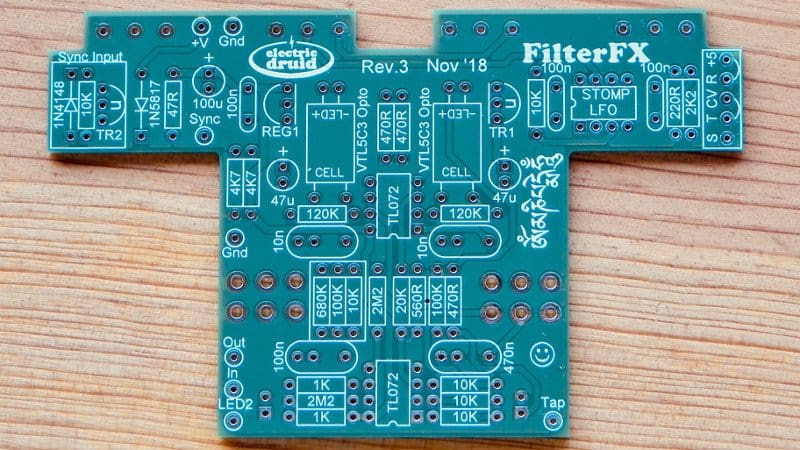

A PCB for the FilterFX 12dB/oct SVF project. This PCB is designed to fit into a Hammond 1590BB enclosure in landscape format, and can be used with PCB mounting pots for a simple, reliable construction.

The PCB is FR4 fibreglass for strength, with plated through-holes and green soldermask and white screen print on both sides. The PCB layout can accept film capacitors with either 5mm/0.2″ or 7.5mm/0.3″ lead spacing, so you’re not limited in your choice of capacitors.

You might find it easier to order the FilterFX PCB + parts set, which includes the two vactrols, the two unusual On-On-On DPDT switches, and the Druid StompLFO chip.





Additional information

Weight 0.018 kg
Dimensions 11.2 × 7 × 0.2 cm
