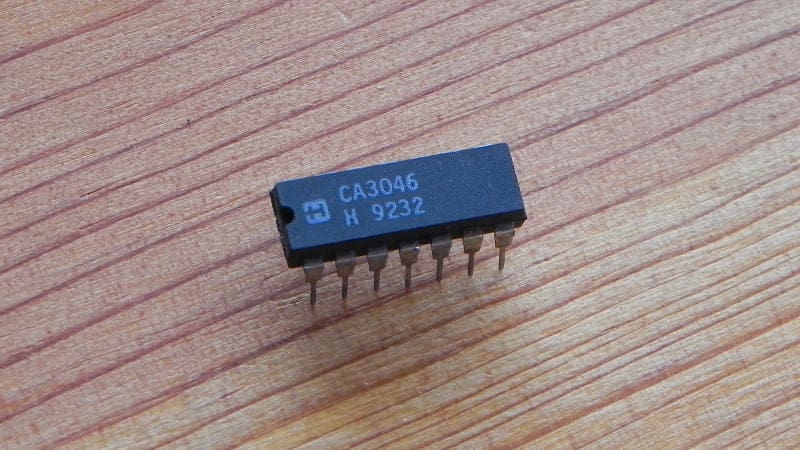

CA3046 matched transistor array

Matched transistor array

6.75 ex. VAT

Out of stock

SKU: CA3046 Category:


The CA3046 is a matched transistor array. It’s ideal for building Moog ladder filters. One example is the Frequency Central Raging Bull, which is based on the Moog Taurus Mk1. You can find the schematics here.

Original datasheet iconDownload CA3046 Transistor array datasheet



Obsolete! Replaced by the AS3046

Sorry, we no longer stock this chip, and it is no longer produced. Instead we have the pin-compatible Alfa AS3046, which is a modern-production clone and will serve as a replacement in any circuits that use the CA3046.

Additional information

Weight 0.001 kg
