Designing a classic OD-1/TS-808/SD-1 Overdrive

First, a quick history of overdrive pedals. Boss got the ball rolling in 1977 with the OD-1, one of the first pedals in their now-famous “compact” series, and the first proper “overdrive” pedal – before that, they were all called “Fuzz” or “Distortion”. This pedal was part of the three releases that started the series, and which were re-released as a 40th anniversary box set!

Maxon/Ibanez followed the OD-1 up with the TS-808 Tubescreamer in 1979, which added a tone control, and tweaked the clipping diodes, but which is otherwise very much like the OD-1. Some sources suggest that the TS-808’s symmetrical clipping was done to avoid a patent on the asymmetrical clipping in the OD-1, but if Boss ever did have such a patent I’ve never found a reference to it. The Tubescreamer was (somewhat unfairly, perhaps) a bigger success than the OD-1 had ever been, so Boss returned the favour and released the SD-1 in 1981. It was an updated version of the OD-1, adding the tone control that the ‘Screamer had, and putting Boss back in the game.

So how similar or different are these circuits really? Let’s have a quick look. Here’s links to the original schematics:

For easier comparison and study, I’ve redrawn these on one sheet and worked out the frequencies of all the tone shaping components I could find. Note that I’ve removed the FET switching that they all use. This switching is the reason for the transistor buffers at the input and output, but we’ll come to that in a bit.

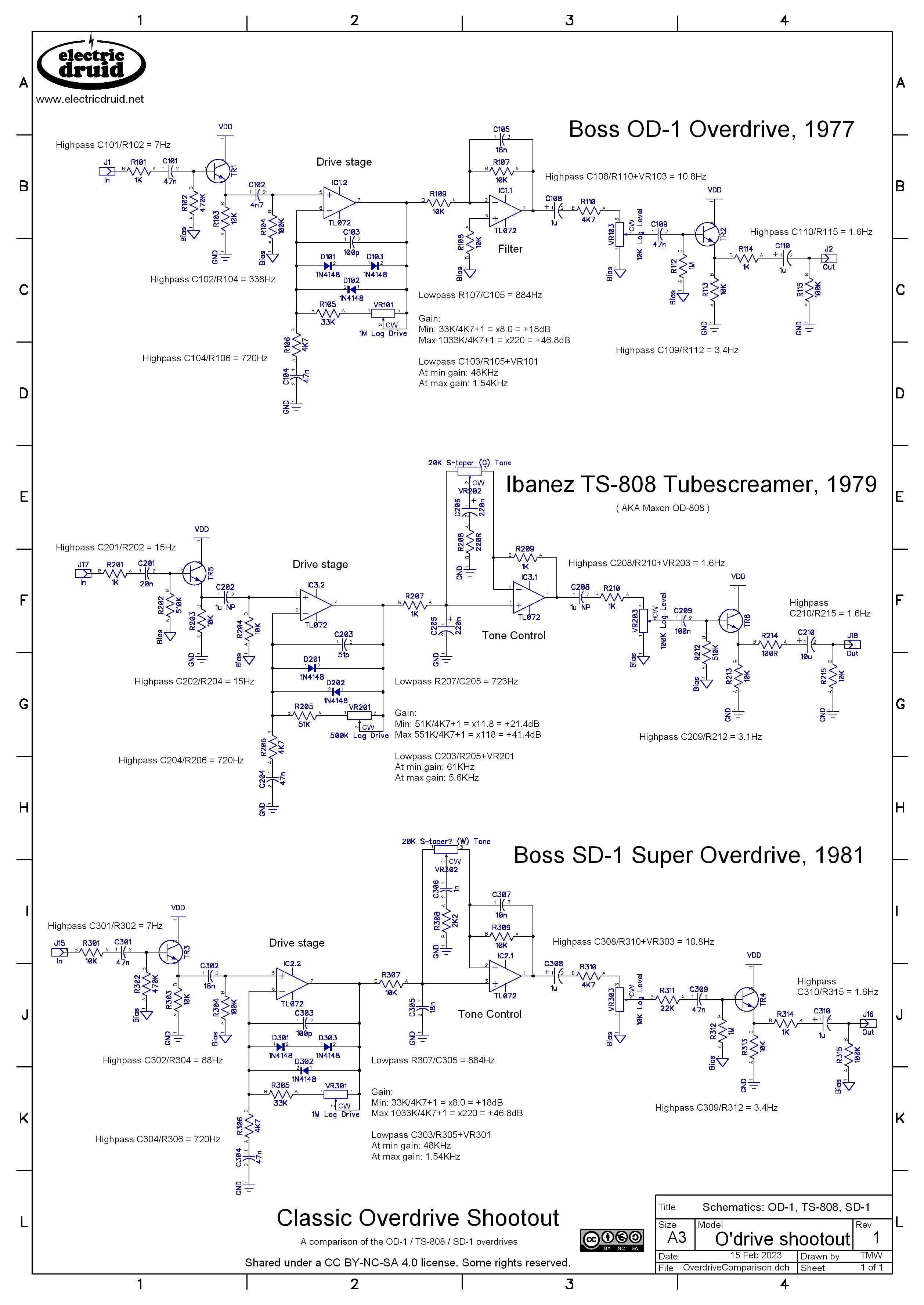

Comparison of the schematics of  the Boss OD-1 Overdrive, Ibanez TS-808 Tubescreamer, and Boss SD-1 Super Overdrive pedals.

This comparison emphasises just how similar these pedals are. In many places they’re identical, and in many others, the minor alterations make no difference to the performance. Example: Who cares if the input bias resistor is 470K or 510K really?!

I’ve labelled all the components in the first circuit from 100, so 101, 102, 103, etc, and everything in the second is 201, 202, 203, etc, everything in the third 301, 302, 303, etc. As far as possible, components doing the same job have the same number, so C102 is the same component as C202 and C302. In the following discussion, I’ll refer to these parts in general as Cx02.

Now, if we want to design a classic overdrive pedal along these lines, we can use the same recipe and tweak the ingredients.

Building a drive stage

I’d usually start a pedal with a simple non-inverting op-amp buffer like this:

Basic op-amp input buffer design
Basic op-amp input buffer design

The OD-1 and SD-1 set the input cap Cx01 value to give a highpass at about 7Hz, so we can do the same. I’ve increased the Rx02 input impedance up to a more modern 1M. That gives an input cap of 22n, but anything from there upwards would work fine. Since the cutoff is already way down at 7Hz, there’s no point throwing >1µF electro caps at it “to improve the bass” – it won’t!

One point to note is that none of these circuits have a extra resistor to ground ahead of the cap to bleed off any charge and help prevent pops. Since they used FET switching, it wasn’t such an issue. We could add one if necessary, but I’m leaving it out for now. A 22n cap doesn’t hold much charge anyway, so I don’t foresee big problems.

So why not use a transistor buffer, like all the pedals above? Well, why did they use one? I mentioned the FET switching that I took out of the schematics (you can see the FETs on the original schematics linked above), and they’re the reason why. Here’s what the FET switching scheme looks like in these pedals:

Classic overdrive FET switching

The FET switches go after the input buffer and drive stage, but before the output buffer. Basically, the FETs need separating from the outside world. In some circuits, you see an extra FET ahead of the drive circuit to turn the input off too, but they didn’t bother with that here. The flip-flop switches on one or the other FET to select either the signal coming from the drive circuit, or the signal coming from the input buffer. Note that even when the effect is “off”, there are actually two buffers in the signal path. The typical way to convert one of these pedals to True bypass switching is to simply take the flip-flop and the FETs out and then stick a switch around the outside, like this:

Simple conversion to true bypass switching

Although this is simple to do, especially if we’re starting with an original pedal, it leaves a lot of unnecessary parts in the signal path. If we drop the FET switching, we can drop the buffers too. That gives us something that looks like this:

Optimised conversion to true bypass switching

As long as our drive circuit has a good input impedance, we’re fine. Our non-inverting op-amp is perfect in this regard, and we have 1M to the bias supply to set the input impedance. Let’s turn it into an overdrive, not a buffer.

The buffer can easily have gain added, and clipping diodes. Since I try to only keep 10K and 100K pots around, I’ll put a 100K in for the Drive pot, and then scale the resistor values to fit this. Using 100K/1K gives us a Tubescreamery x101 gain, so that’s a good start.

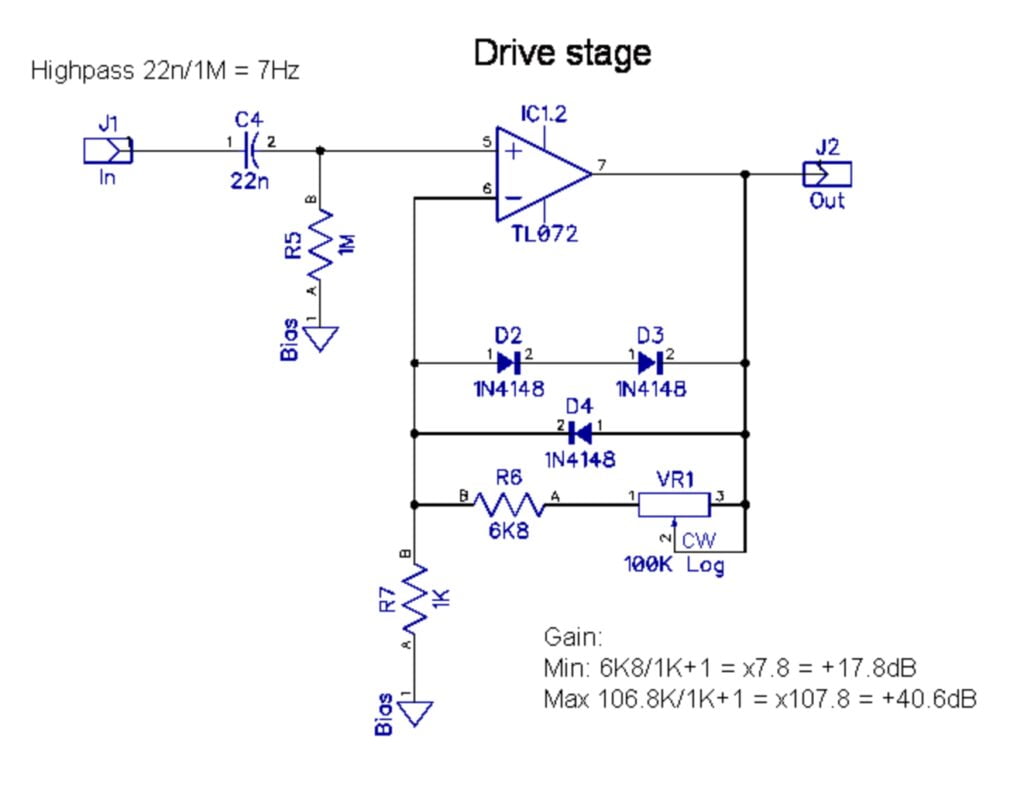

Turning the buffer into a drive stage

Remember, this is a non-inverting amplifier, so the gain equation is:

Gain = (Rf / Rg ) + 1

Rf is the feedback resistor (the pot, in our case) and Rg is the resistor to ground.

We could add a series resistor in series with the pot to set the minimum gain, which will go to unity otherwise. We’re looking for x8 or x10 or so, so 6K8, 7K5, or 8K2 would be good choices. I’m going with 6K8, which sets the minimum gain to x7.8, +17.8dB. That’s more like the SD-1 than the TS-808 which is a little bit hotter at minimum, but there isn’t much in it. The extra series resistance bumps up the maximum gain just a little bit too, to x107.8, or +40.6dB. That should be enough for a decent overdrive without pushing us into distortion or fuzz territory.

We also need to make a choice about the clipping diodes. We could go for symmetric like the TS-808, or asymmetric like the Boss pedals. I’ve chosen asymmetric, since it gives more options – I could put a wire link in for one of the diodes if I want to build a TS version one day.

We also need to think about the capacitor selection. The original circuits all use a cap that sets a highpass cutoff at 720Hz. The idea of this is to compensate for the fact that lower notes on a guitar (the thicker wound strings) are much louder than the high (thinner, unwound) strings. In our circuit, the 1K resistor works with the capacitor to ground to set a highpass filter cutoff point. This is Rx06/Cx04 in the schematics. To get 720Hz with 1K, we need a 220n capacitor. You can check that over on the Filter Calculator page.

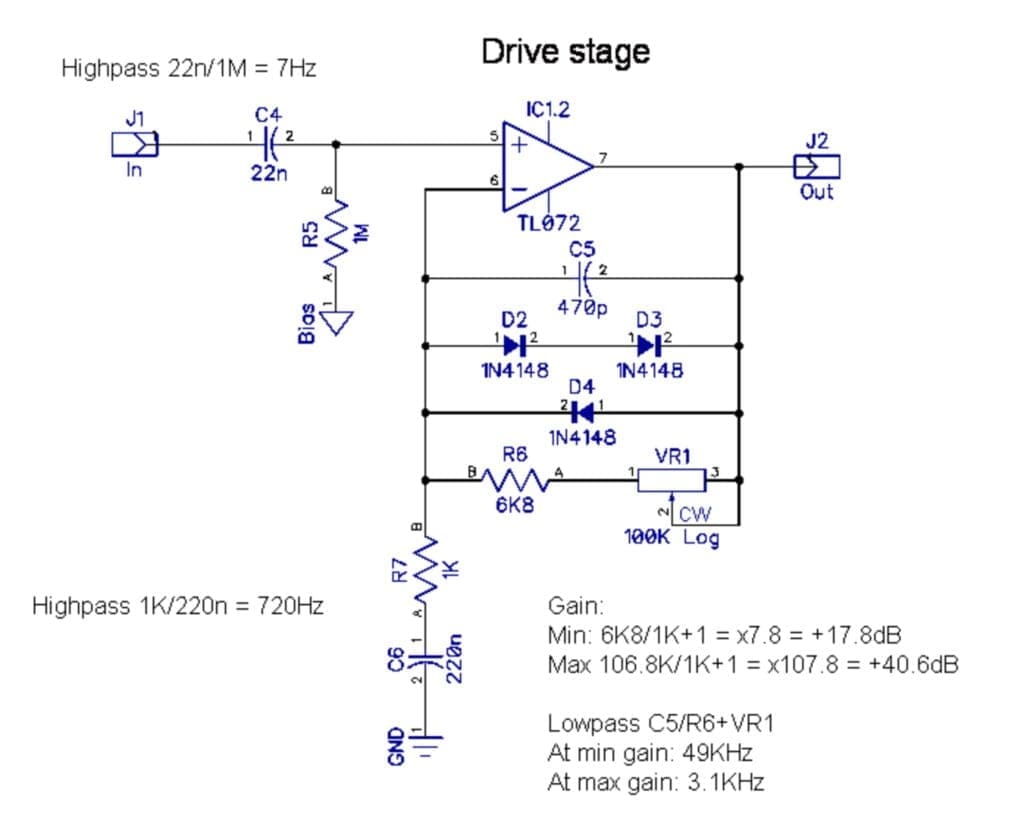

Complete drive stage

Note also that because we’ve added a capacitor, we no longer have to terminate the bottom of the feedback network to the Bias voltage. Since the capacitor blocks the DC, we could (in theory) use any voltage level, so we connect it to ground. Generally it’s a good idea to only use a “virtual ground” bias supply where necessary, so “proper” ground is preferred here.

All the circuits also limit the gain at high frequencies with Cx03. This cap is handy because it is interactive with the gain control – more gain gives you a lower cutoff, so it acts to smooth the drive more as you turn it up. The Tubescreamer does less of this at this stage than the Boss pedals, but the filtering still comes down to 5.6KHz at max gain. I’ve “split the difference” between the 1.56KHz of the Boss pedals and the Ibanez and gone for 3.1KHz.

Looking at the tone control

The biggest change Ibanez made when they modified the OD-1 to create the Tubescreamer was the addition of the tone control. It consists of two parts. There’s a simple RC lowpass filter on the way in, and that is followed by a EQ-style tone control that can provide boost or cut. Let’s have a look at it.

Here’s the original circuit in the sim, including the lowpass filter at 720Hz (R4/C1):

And here’s the response:

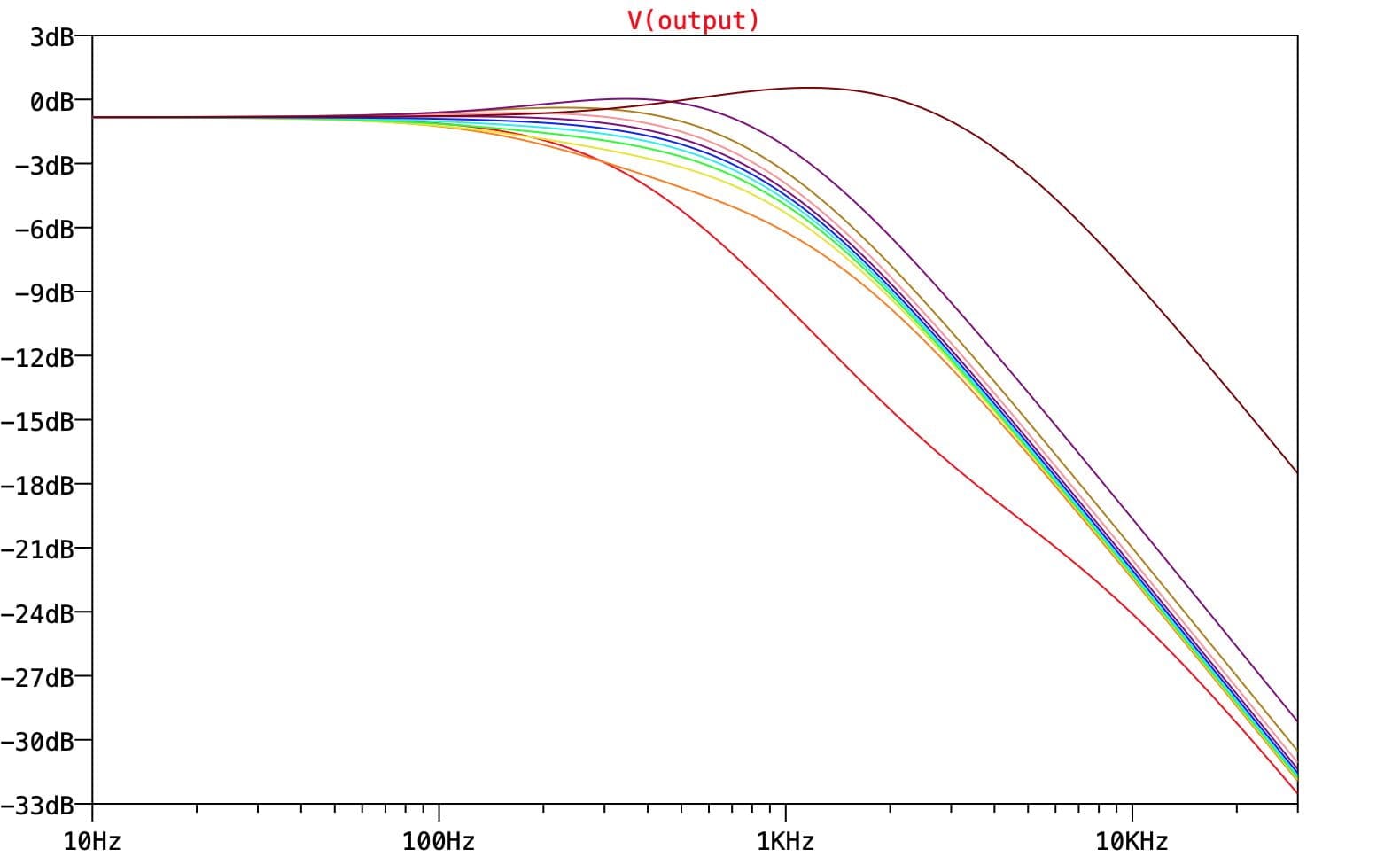

TS-808 tone section frequency response

As you can see, it provides a basic broad boost to the treble, with perhaps a slight hump around 2KHz or so. What’s going on with all those lines clumped in the middle though?!? The sim is set up to show us the output every 10% of the way around the Tone pot values, so the pot feel looks wacky. We can see what’s going on better if we remove the 1K/220n lowpass filter and plot just the EQ response:

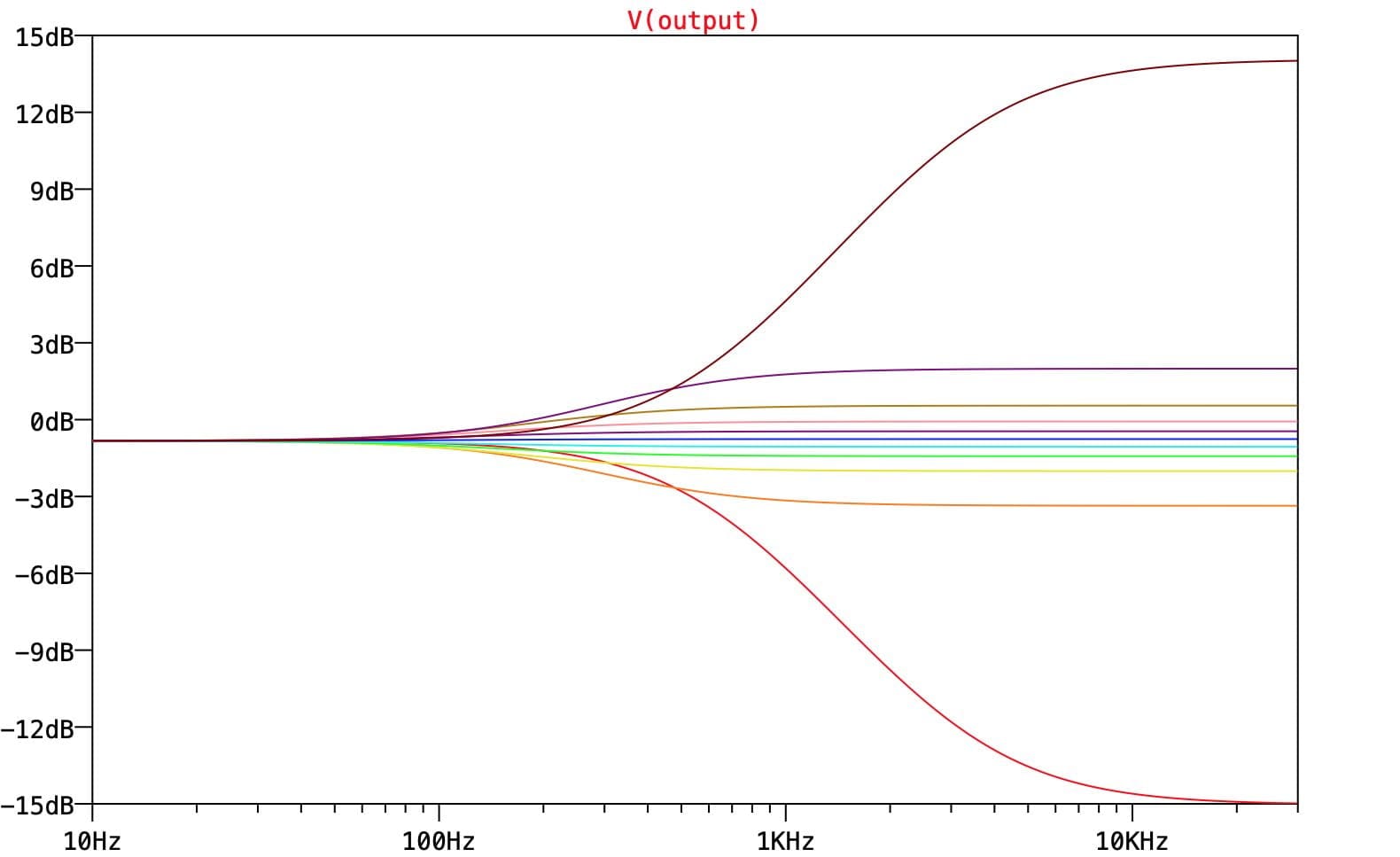

TS-808 EQ section frequency response

This makes it clear what is happening. We can see that this EQ provides a cut/boost of about +/-15dB, but that only the extreme settings really do anything (from 0% to 10%, and from 90% to 100%). 80% of the pot’s travel is all bunched up in the middle doing not a lot. Ibanez were aware of this and used an unusual S-taper pot to counteract the effect and to help spread out the middle settings.

However, it’d be nice if we could avoid the need for some strange pot taper. Luckily, if we change the EQ stage for a different circuit design, we can sidestep the problem.

Here’s a Baxandall-style replacement, again with the 720Hz lowpass in front of it:

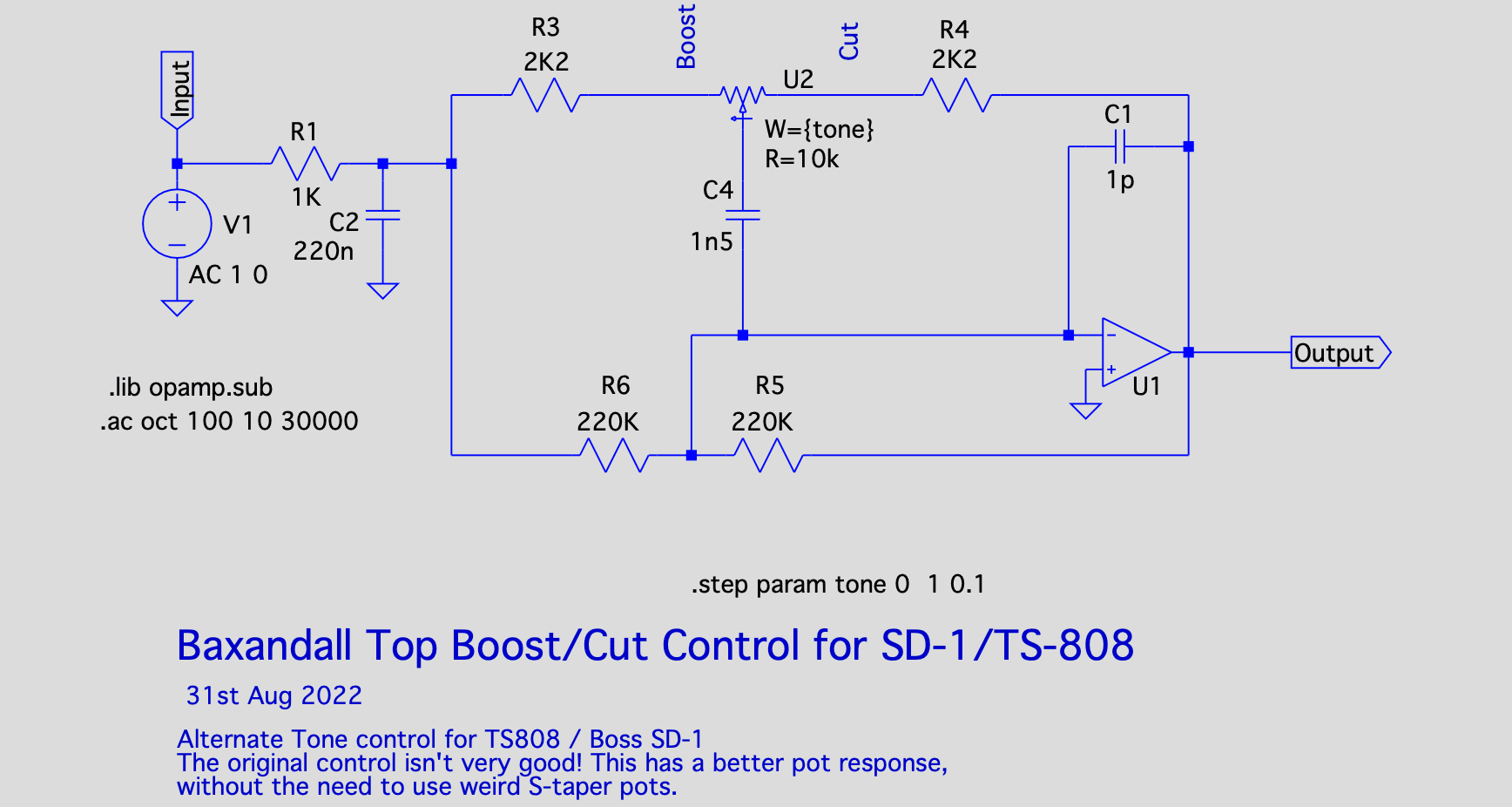

Alternative tone section circuit for OD-1/TS-808/SD-1 style overdrive pedals

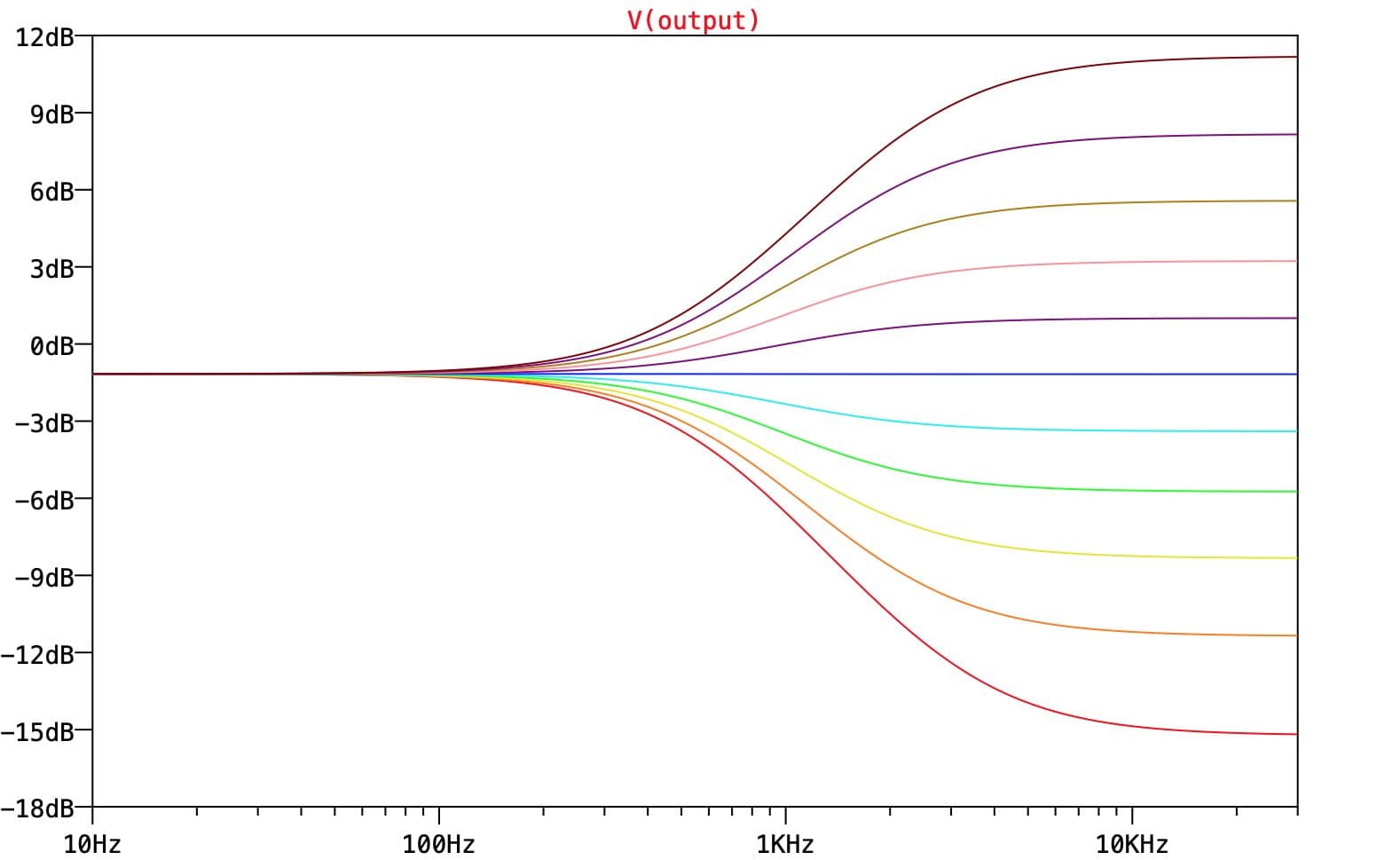

And here’s the response, ignoring the lowpass filter – it’s basically the same, except now the lines are much more evenly spaced, so no weird pot is required:

Alternate EQ section frequency response

Putting the 720Hz filter back in front gives the following response. Compare this with the one further up the page and consider how much smoother the pot feel will be with just a simple linear pot.

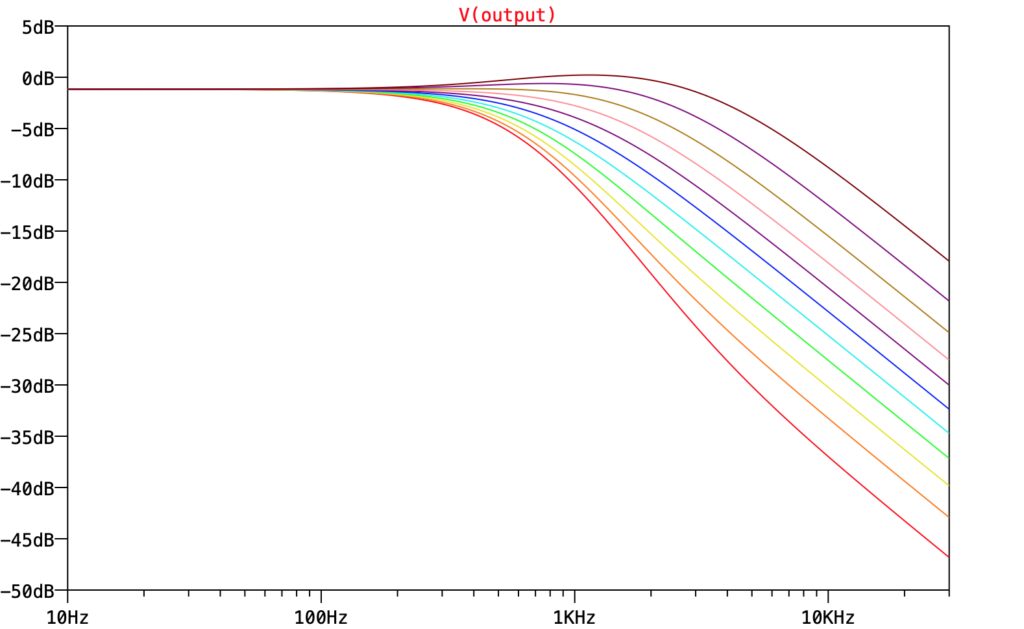

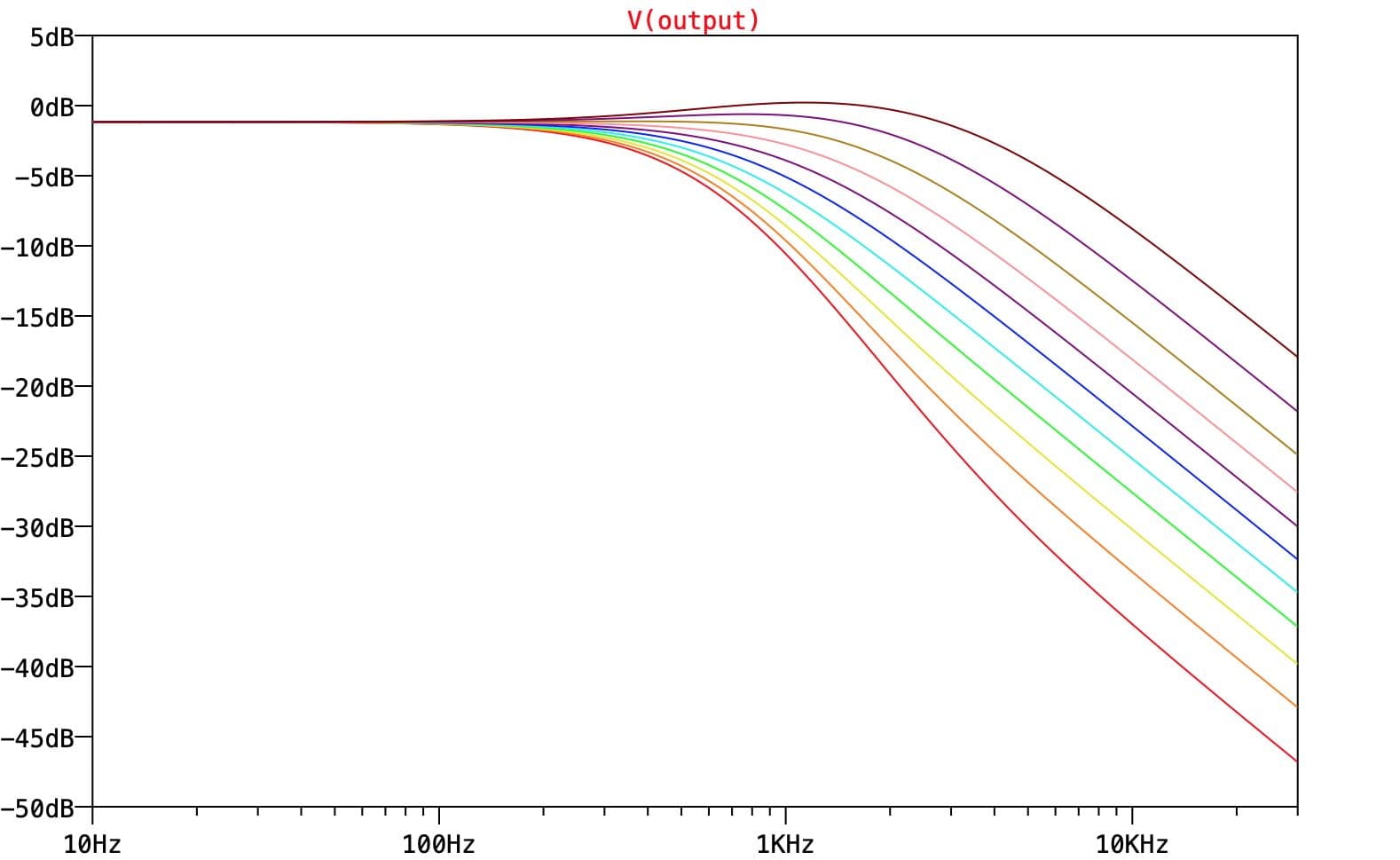

Final frequency response of alternate tone section

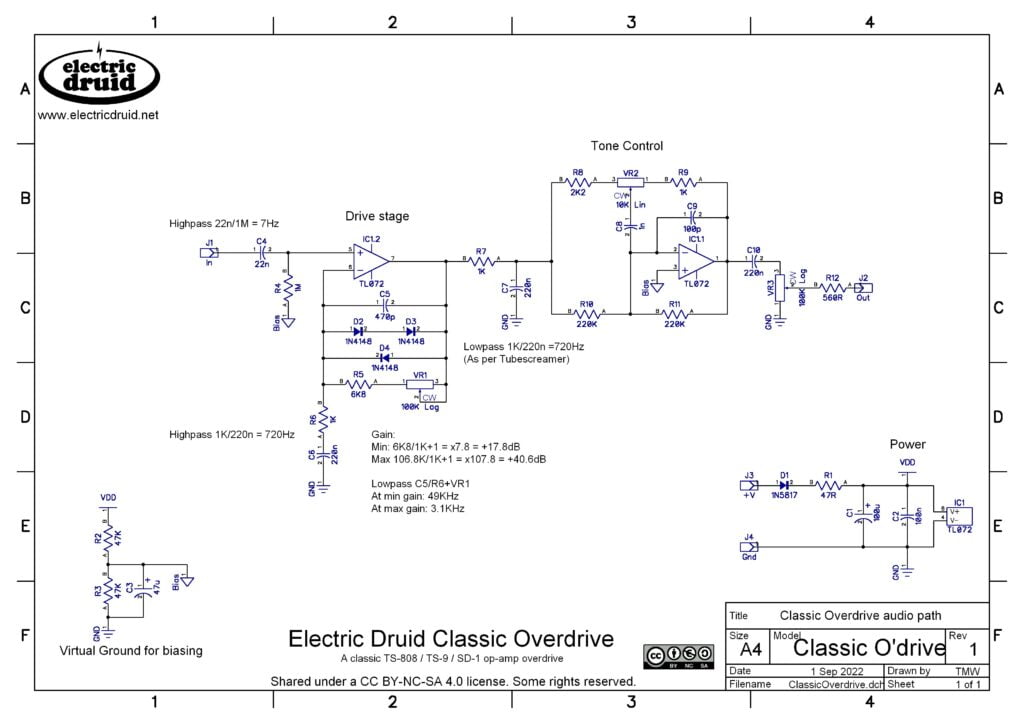

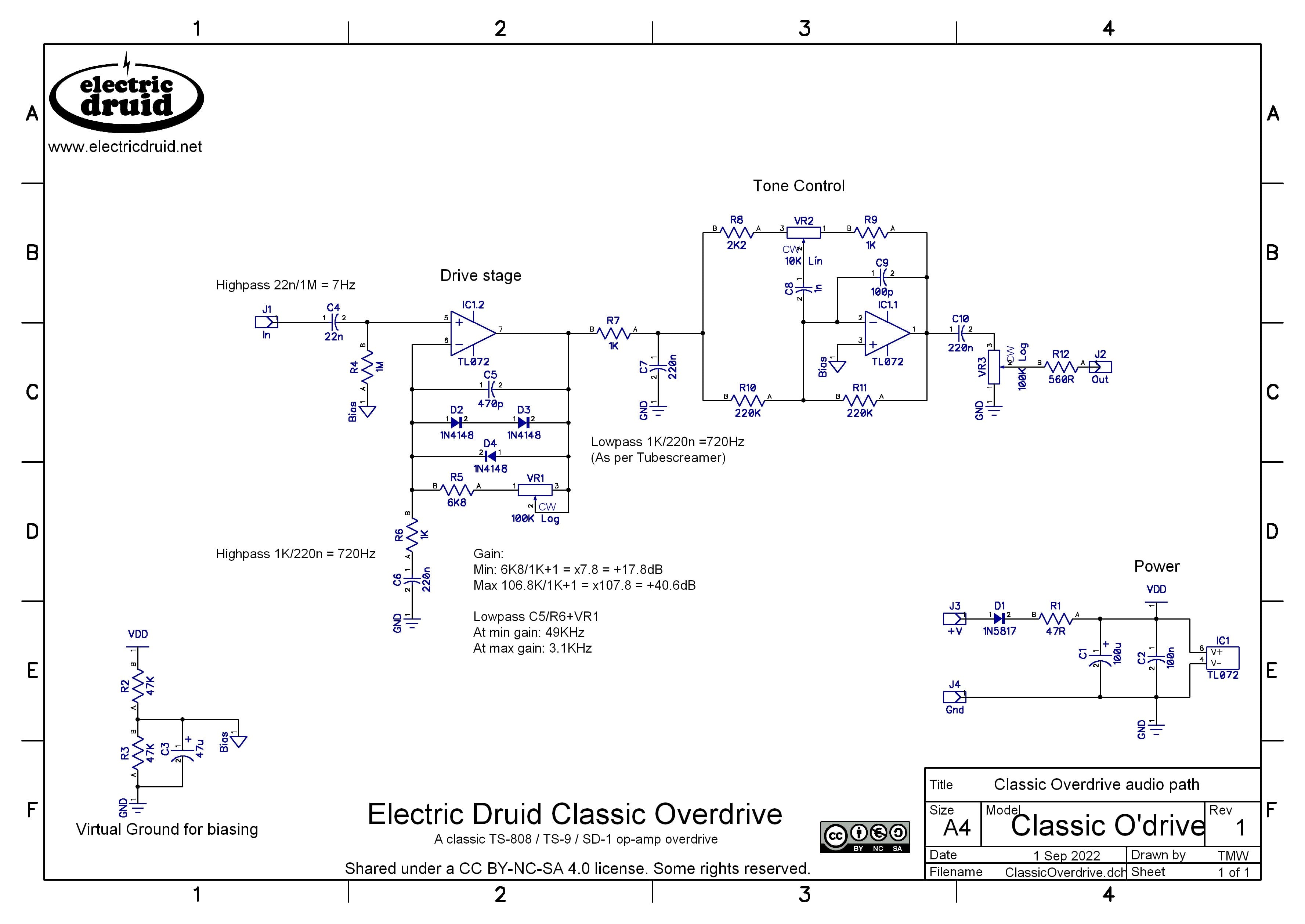

If we add this “new improved” tone section onto our drive stage, we have a complete classic overdrive with only one dual op-amp chip.

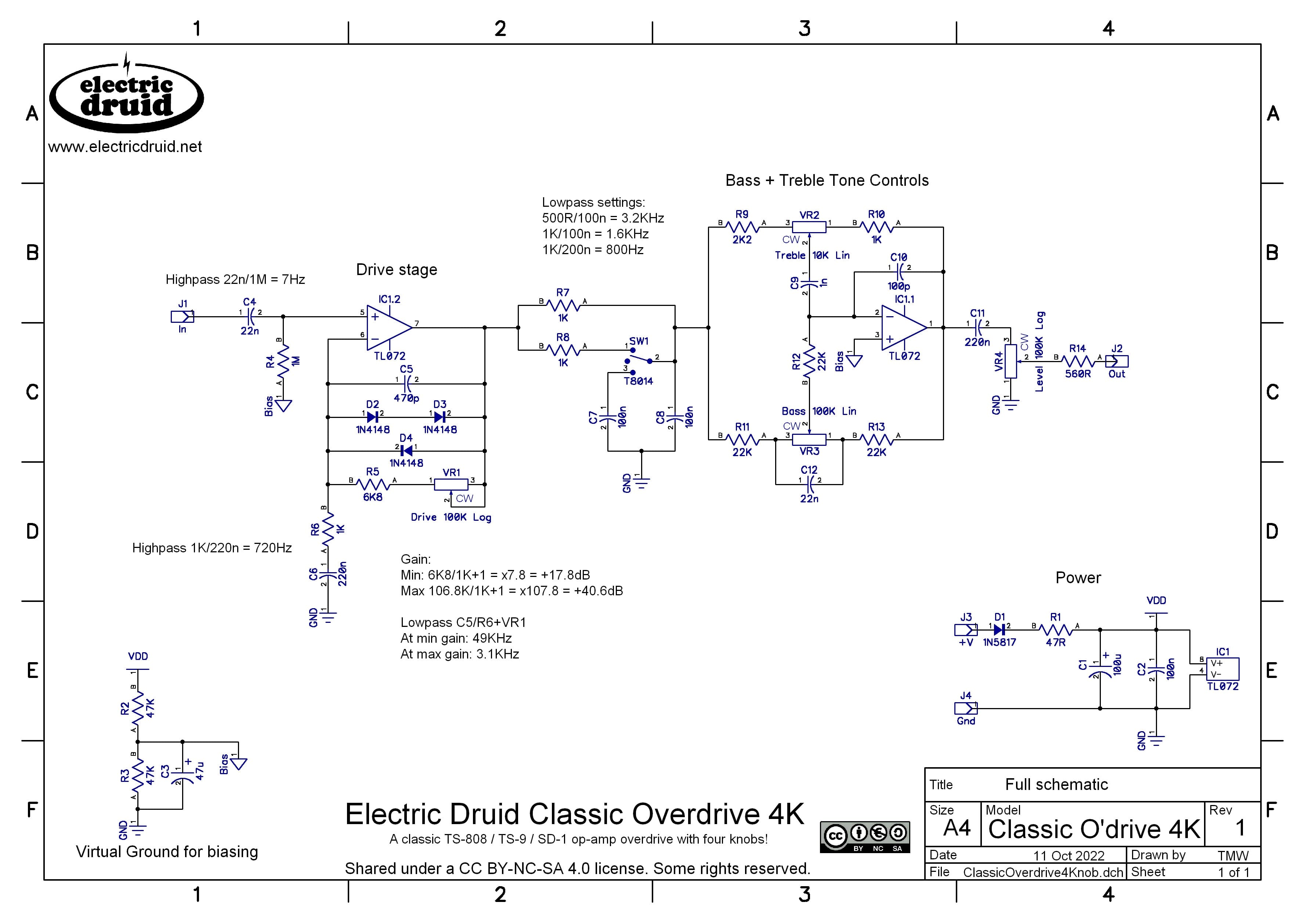

That covers the basic three-knob overdrive. But since we’ve got a Baxandall tone control in our circuit now, it would be easy for us to add a “Bass” control as well as the “Tone” (“Treble”, really) that we already have. We could also throw in some options for that pre-tone lowpass filter using an On-Off-On toggle switch. That gives us this, the fully-tricked-out Classic Overdrive 4-knob version (“4K”).

Of course, I’m not the first person to consider adding a Baxandall tone section to a OD-1 or TS-808. That’s basically what the Xotic BB Preamp is. Aion FX did some excellent work tracing the various versions, which is worth a look. So if you fancy building a $200 boutique overdrive pedal for less, now you can!

Going further

There’s plenty of opportunities for modifications in a circuit like this. I’ve marked up all the main tone-shaping components, so you can experiment changing capacitor values. Remember, doubling a cap’s value (so up from 4n7 to 10n, from 10n to 22n) will lower the filter frequency by an octave. Halving the cap value takes it up an octave. You can tweak both the bass and treble response in the drive stage, which will alter the “feel” of the pedal and the amount of harmonics it produces. After that, there’s that critical RC combination on the way to the tone control. Again, you can tweak this either brighter or darker and see what you think. The other favourite mod for stuff like this is to experiment with different diode combinations – silicon diodes, germanium diodes, LEDs, whatever.

Feedback and comments

Any feedback about the pedal is appreciated! Please comment below.

These designs and schematics are licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License. Here’s the legal stuff.
