Description

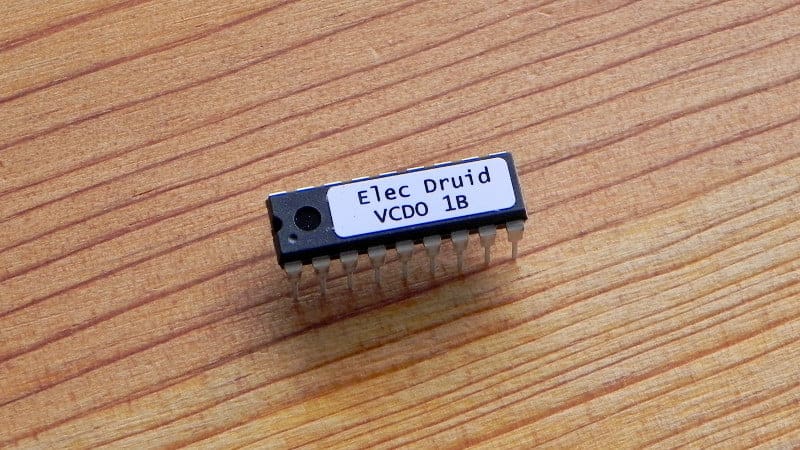

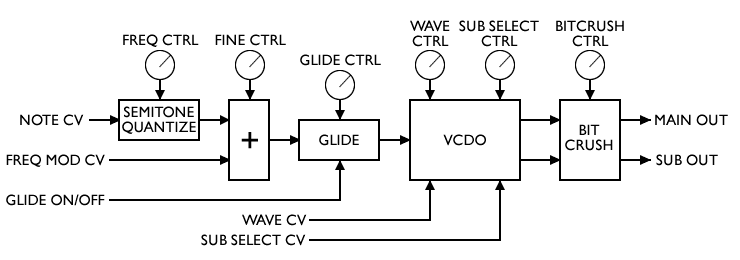

The VCDO chip is a powerful voltage-controlled 8-bit wavetable oscillator. It includes a sub-oscillator, a glide feature, and separate modulation inputs for frequency and waveform modulation.
Download Electric Druid VCDO Datasheet

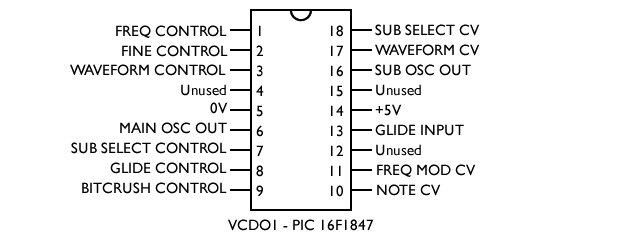

The datasheet includes example circuit diagrams, example waveforms, and the chip pinout diagram.
There are further details on the VCDO project page.
Mar 2024 – Still in stock!
Although we said that we were retiring this chip last year, I haven’t had time to really sit down and do some proper development work on a VCDO2 replacement, so we’ve kept restocking this version. That will probably continue to be the case until I eventually get around to sorting out the new version!
Unauthorised Service (verified owner) –
Hi Tom ,thanks for the chip. I went the awkward route and per data sheet ,did stripboard layout, fingers crossed. After initial poor performance, a muffwiggler thread suggested 220uf from 17 to gnd. Finally a 104 cap from pin 10 to gnd cleared up glitches in and out of glide mode/bitcrush anamolies . Starting to to sound proper! Now..
Tom Wiltshire –
Good work!
My initial prototype was on strip board too, so I know it’s possible.But you do have to be a bit careful with the layout.
