DigiDelay PCB

Description

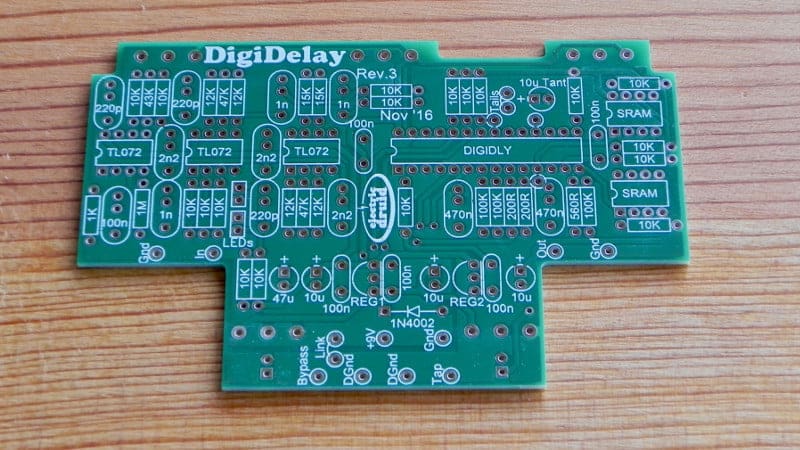

A PCB for the DigiDelay 4 second digital delay project. This PCB is designed to fit into a Hammond 1590BB enclosure in landscape format, and can be used with PCB mounting pots for a simple, reliable construction.

The PCB is FR4 fibreglass for strength, with plated through-holes and green soldermask and white screen print on both sides. The PCB layout can accept film capacitors with either 5mm/0.2″ or 7.5mm/0.3″ lead spacing, so you’re not limited in your choice of capacitors.
