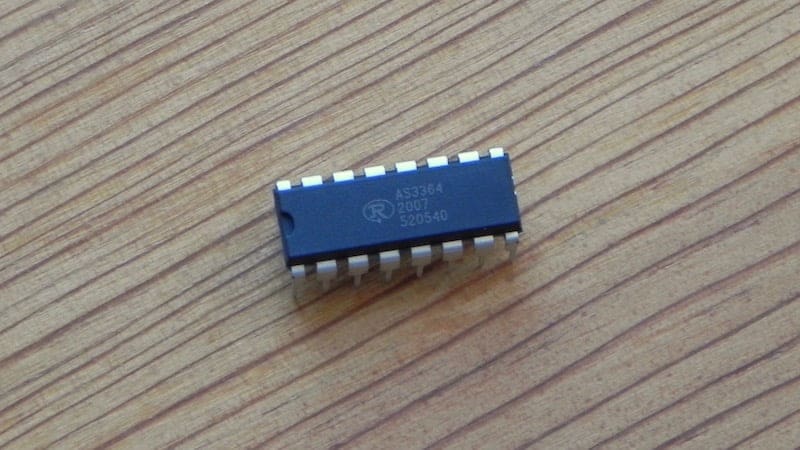

AS3364 Quad VCA

Quad VCA with linear control response

5.00 ex. VAT

80 in stock (can be backordered)

SKU: AS3364 Category:
1 - 9€5.00 ex. VAT
10 - 99€4.50 ex. VAT
100+€4.00 ex. VAT

Description

The Alfa AS3364 quad VCA is a very useful general purpose chip. Unlike the similar AS2164 (with which it shares a pinout) this chip has a linear control response, the same as classic OTAs like the LM13700 or CA3080. It could even be used to convert a 2164 circuit to linear control, if you needed such a thing!

Each VCA has a 100dB dynamic range and accepts attenuation control voltages from 0V (0% signal) to 2V (100% signal). Supply voltage is ±3V to ±12V (or +15/-5V), so this is a chip that can also be used with stompbox 9V supplies.

Download AS3364 datasheetAlfa Rpar datasheet icon







Additional information

Weight 0.00115 kg
Dimensions 2 × 0.9 × 0.7 cm
